Re: I.V. Stove

Post by samh » Mon Nov 24, 2008 11:45 pm

I posted this comment on Dana's Flickr page but it's worth repeating here:

The best part of you building this stove was getting to drink that Old Mil and High Life at like ten in the morning.

User avatar
dlarson
Site Admin
Posts: 429
Joined: Tue Jul 08, 2008 10:02 pm
Location: minnesota

Re: I.V. Stove

Post by dlarson » Tue Nov 25, 2008 11:43 am

DarenN wrote:i hooked this up to a plastic water bottle with the cap modified to allow for an air-lock free fuel feed. this is still way over built. heavey and bulky. but i've proved the tech. (50 minutes now)

edit: 75 minutes till the fuel ran out.
by very careful fuel feed control i was able to attain a simmer just by limiting the drip rate.
That sounds very promising Darren!
"Hiking is just walking where it's O.K. to pee." -Demetri Martin

User avatar
zelph
Posts: 15834
Joined: Tue Aug 14, 2007 1:53 pm

Re: I.V. Stove

Post by zelph » Tue Nov 25, 2008 12:06 pm

Daren, nice experiment and interesting results. Thanks for following up on that.
http://www.woodgaz-stove.com/

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: I.V. Stove

Post by DarenN » Wed Nov 26, 2008 9:35 pm

something that i failed to mention, and still amazes me, is how very little fuel needs to be in the burner to maintain full burn. the bottom of the can not even covered, just a little bit in the grooves around the outside.

Daren.......
"I'd rather be happy than right." Slartibartfast

User avatar
zelph
Posts: 15834
Joined: Tue Aug 14, 2007 1:53 pm

Re: I.V. Stove

Post by zelph » Thu Nov 27, 2008 12:06 pm

I.V. tubes have a drip valve, use one of those. They should be easily attainable. What do think?

A flex tube with a metal tube on the end that would be inserted into the stove and the drip fuel feed turned on. wow, sounds workable.
http://www.woodgaz-stove.com/

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: I.V. Stove

Post by DarenN » Thu Nov 27, 2008 7:13 pm

zelph wrote:I.V. tubes have a drip valve, use one of those. They should be easily attainable. What do think?

A flex tube with a metal tube on the end that would be inserted into the stove and the drip fuel feed turned on. wow, sounds workable.
that's exactly the direction i've been thinking in. i haven't run across a source yet.

Daren......
"I'd rather be happy than right." Slartibartfast

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: I.V. Stove

Post by DarenN » Thu Nov 27, 2008 7:53 pm

here's some pics of the BS system i put together just to see if it would work.

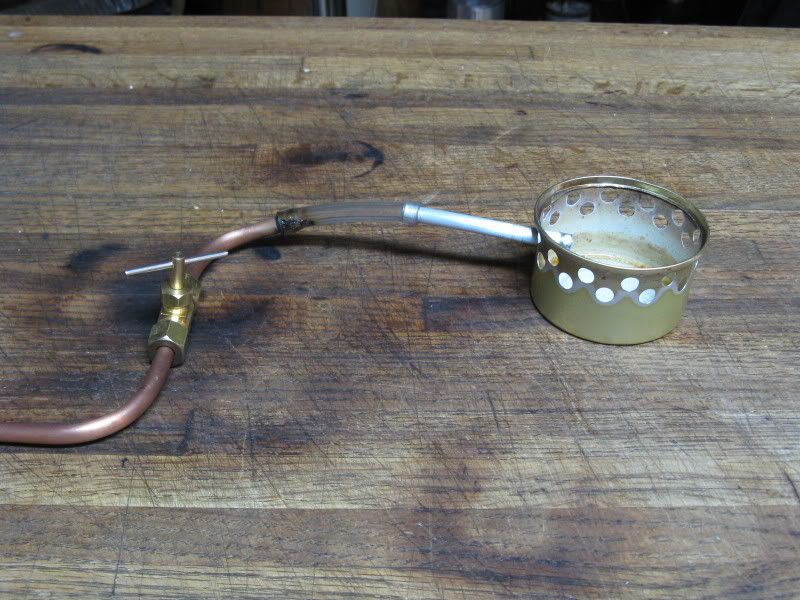

the burner and control valve:

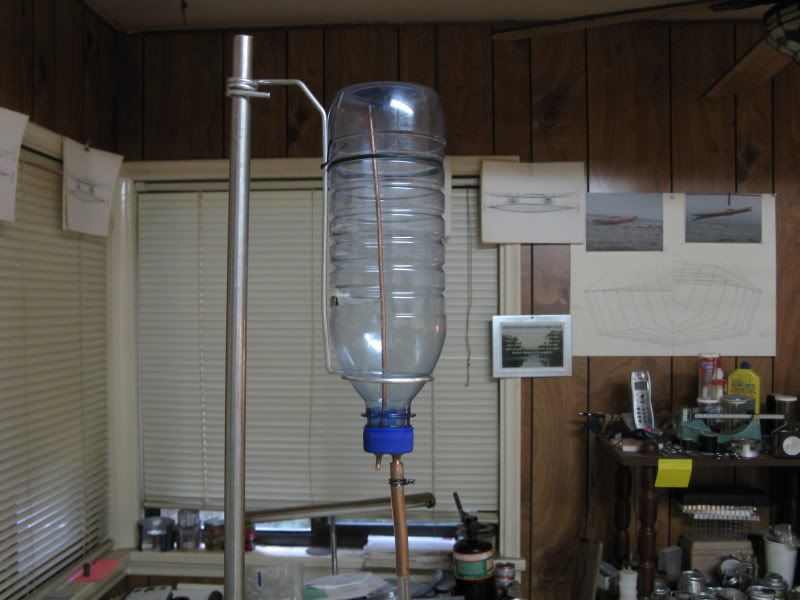

fuel bottle. this pic clearly shows how i went about eliminating the 'air-lock' problem:

Daren........
"I'd rather be happy than right." Slartibartfast

irrationalsolutions
Posts: 1450
Joined: Thu Sep 25, 2008 5:10 am
Location: South Carolina

Re: I.V. Stove

Post by irrationalsolutions » Thu Nov 27, 2008 11:02 pm

it looks like you are heading in a good direction. i've been watching the thread to see the progress and it looks good.
“Do or do not... there is NO try.” Yoda

Luke "Whats in (out) there?" Yoda "Only what you take with you."

Luke "I can’t believe it." Yoda "That is why you Fail.”

DaddyMnM
Posts: 346
Joined: Tue Feb 26, 2008 7:26 pm
Location: Seattle

Re: I.V. Stove

Post by DaddyMnM » Fri Nov 28, 2008 3:20 am

That picture of Daren's is very much what I visualized in reading his original description. Very neat. So, I was wondering, Why not put an aquarium valve on the air inlet to the bottle rather than on the fuel outlet? Could you make the air lock work to your advantage to achieve the desired result?

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: I.V. Stove

Post by DarenN » Fri Nov 28, 2008 11:31 am

DaddyMnM wrote:That picture of Daren's is very much what I visualized in reading his original description. Very neat. So, I was wondering, Why not put an aquarium valve on the air inlet to the bottle rather than on the fuel outlet? Could you make the air lock work to your advantage to achieve the desired result?
i don't know, but i'll try it later today. however, it seems to me that it would be better to control flow rate directly rather than in-directly. i've got the day off and had plans to stop by an aquariun shop and look for some valves and tubing.

Daren...
"I'd rather be happy than right." Slartibartfast
