Simple capillary stove...
So I have been playing with A very simple CAS stove that is getting really good results as far as I can tell.
The design almost seems to easy for the results I am getting really.
I am basically using two bottoms of 12 oz cans the top portion is what I use to put horizontal indentations into the side walls and I then remove the center section from the bottom of the can.
I cut the other can A tad bit shorter than the top piece and place the two sections together and drill A few 1/16 holes around the top of pressure release.
Im sure this isnt A new design but it is new for me and its boiling two cups of room temp water in five minutes using 1/2 alcohol and an imusa 10 cm pot.
I will post A video if there is any interest in this at all.
Just trying to play with new things and this is new to me and I seem to like it more than the pressure stoves I have been playing with.
The design almost seems to easy for the results I am getting really.
I am basically using two bottoms of 12 oz cans the top portion is what I use to put horizontal indentations into the side walls and I then remove the center section from the bottom of the can.
I cut the other can A tad bit shorter than the top piece and place the two sections together and drill A few 1/16 holes around the top of pressure release.
Im sure this isnt A new design but it is new for me and its boiling two cups of room temp water in five minutes using 1/2 alcohol and an imusa 10 cm pot.
I will post A video if there is any interest in this at all.
Just trying to play with new things and this is new to me and I seem to like it more than the pressure stoves I have been playing with.
-
- Posts: 1450
- Joined: Thu Sep 25, 2008 5:10 am
- Location: South Carolina
Re: Simple capillary stove...
Go for it. I'm curious to see your results.
“Do or do not... there is NO try.” Yoda
Luke "Whats in (out) there?" Yoda "Only what you take with you."
Luke "I can’t believe it." Yoda "That is why you Fail.”
Luke "Whats in (out) there?" Yoda "Only what you take with you."
Luke "I can’t believe it." Yoda "That is why you Fail.”
Re: Simple capillary stove...
A photo would be goodI am basically using two bottoms of 12 oz cans the top portion is what I use to put horizontal indentations into the side walls and I then remove the center section from the bottom of the can.
I cut the other can A tad bit shorter than the top piece and place the two sections together and drill A few 1/16 holes around the top of pressure release.

http://www.woodgaz-stove.com/
-
- Posts: 96
- Joined: Tue May 24, 2016 6:13 pm
Re: Simple capillary stove...
I'll build a couple today after work and try to put a video together.
-
- Posts: 96
- Joined: Tue May 24, 2016 6:13 pm
Re: Simple capillary stove...

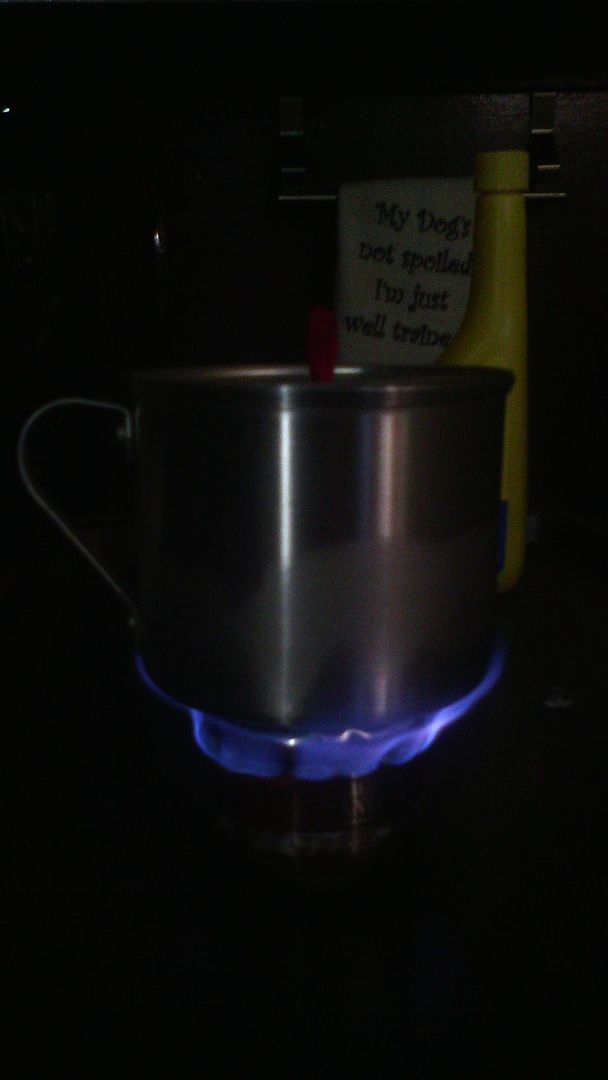

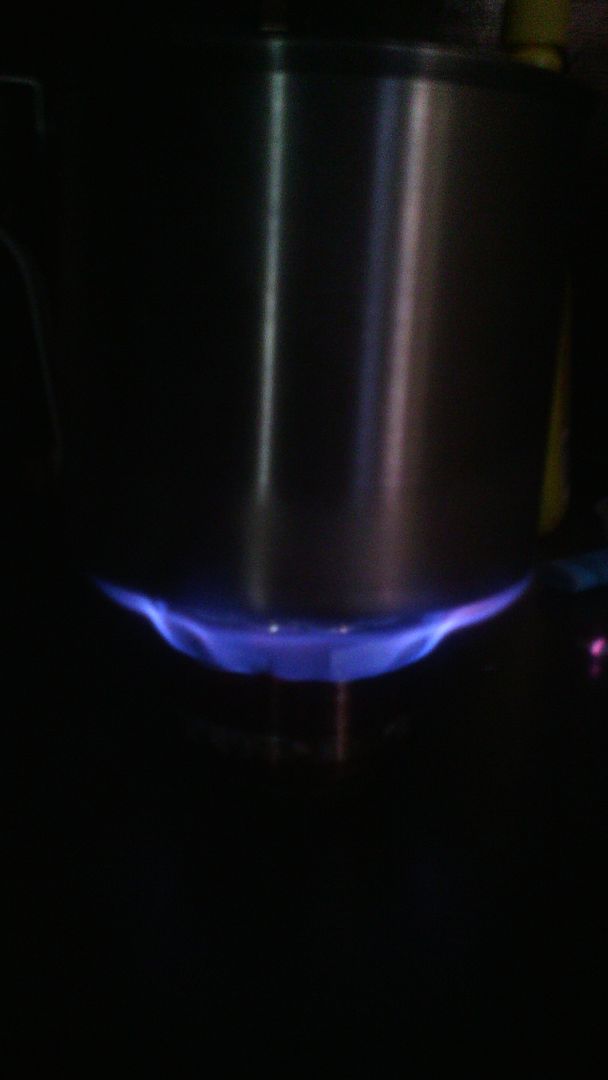

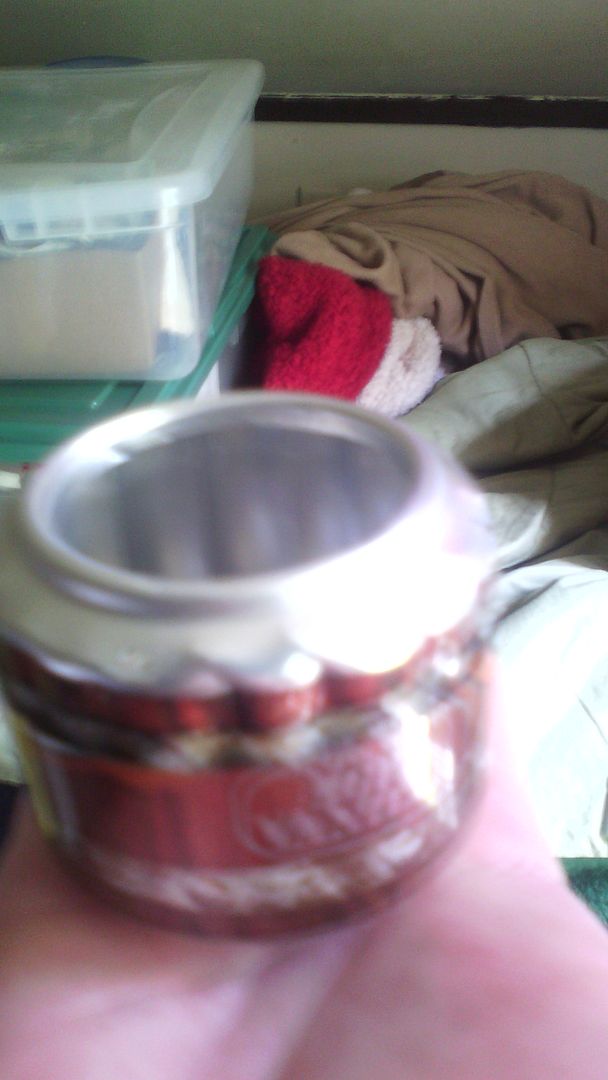

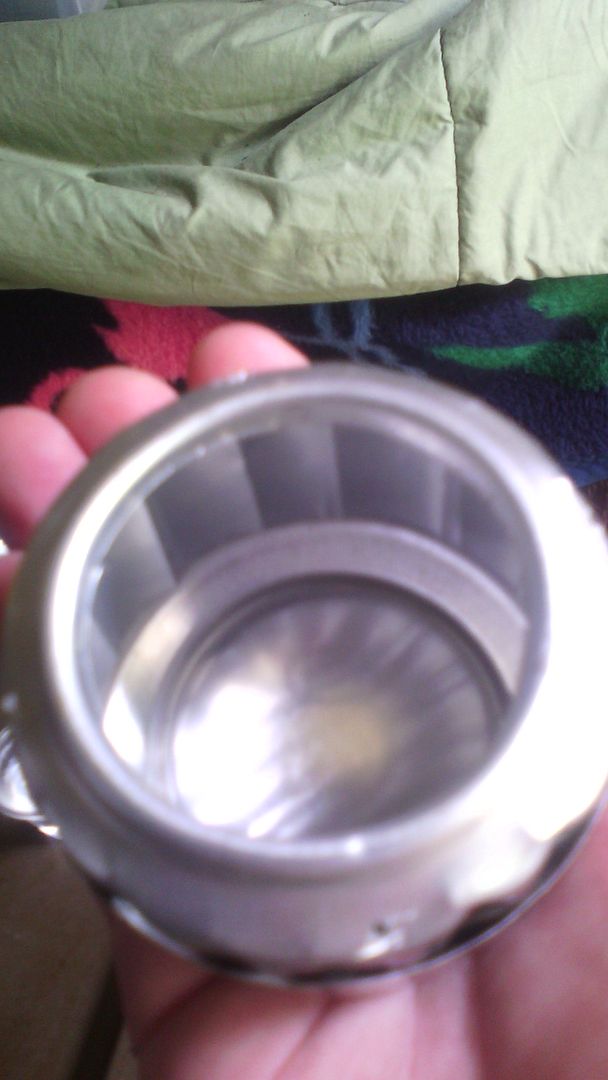

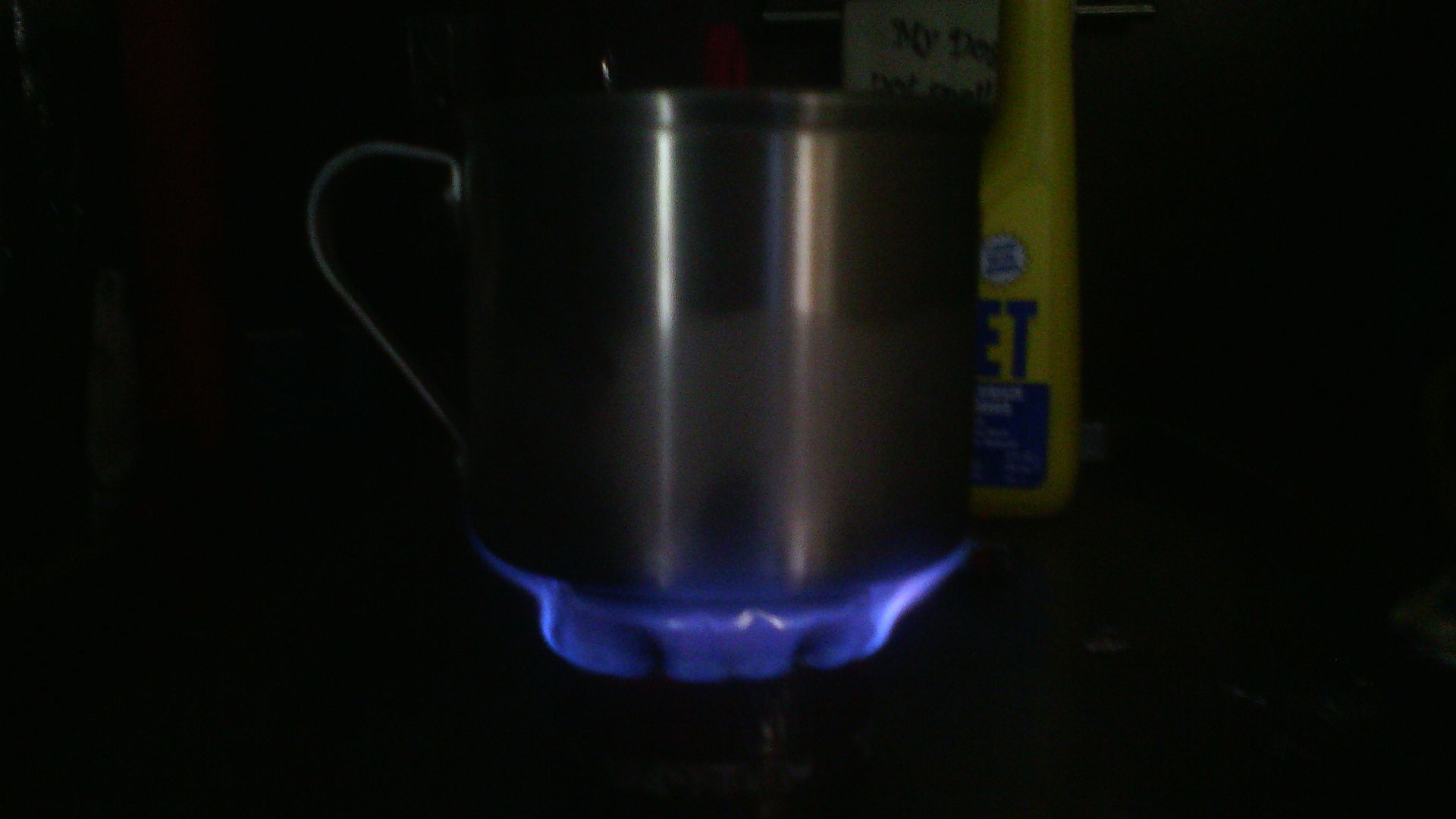

Here is A couple pictures.
I did two runs one using A 12 cm imusa pot another using a 10cm imusa pot.
I got the same results within seconds on both runs using 15 ml of heet.
Which was boil time of two cups of room temp water was 5 minutes,run time was 6 minutes.
This was tested inside with water temperature at roughly 80 degrees.
I will `continue to play around more and maybe make A cap for the top section as well as with 7.5 ounce cans which I think will work better for narrower pots.





I did two runs one using A 12 cm imusa pot another using a 10cm imusa pot.
I got the same results within seconds on both runs using 15 ml of heet.
Which was boil time of two cups of room temp water was 5 minutes,run time was 6 minutes.
This was tested inside with water temperature at roughly 80 degrees.
I will `continue to play around more and maybe make A cap for the top section as well as with 7.5 ounce cans which I think will work better for narrower pots.





Re: Simple capillary stove...
Ok, now I can see clearly
I was thinking it had jets. It must really get to pumping out the flames once the stove gets hot....right?
Is it the same diameter as a fancy feast cat food can?

Is it the same diameter as a fancy feast cat food can?
http://www.woodgaz-stove.com/
-
- Posts: 96
- Joined: Tue May 24, 2016 6:13 pm
Re: Simple capillary stove...
It is the diameter of a 12 ounce can . I think a bit wider than FF burner.
And yes it pumps out some pretty good heat
I am going to build a couple out of 7.5 ounce cans and see if it burns better with A small diameter pot ...
Also going to play around with a top for it .
And yes it pumps out some pretty good heat
I am going to build a couple out of 7.5 ounce cans and see if it burns better with A small diameter pot ...
Also going to play around with a top for it .
-
- Posts: 1450
- Joined: Thu Sep 25, 2008 5:10 am
- Location: South Carolina
Re: Simple capillary stove...
Looks like a even burn.
“Do or do not... there is NO try.” Yoda
Luke "Whats in (out) there?" Yoda "Only what you take with you."
Luke "I can’t believe it." Yoda "That is why you Fail.”
Luke "Whats in (out) there?" Yoda "Only what you take with you."
Luke "I can’t believe it." Yoda "That is why you Fail.”
-
- Posts: 96
- Joined: Tue May 24, 2016 6:13 pm
Re: Simple capillary stove...
It burns very even and hot.`
