Wire Bending Jig

Post by DarenN » Sun Jun 29, 2008 10:03 am

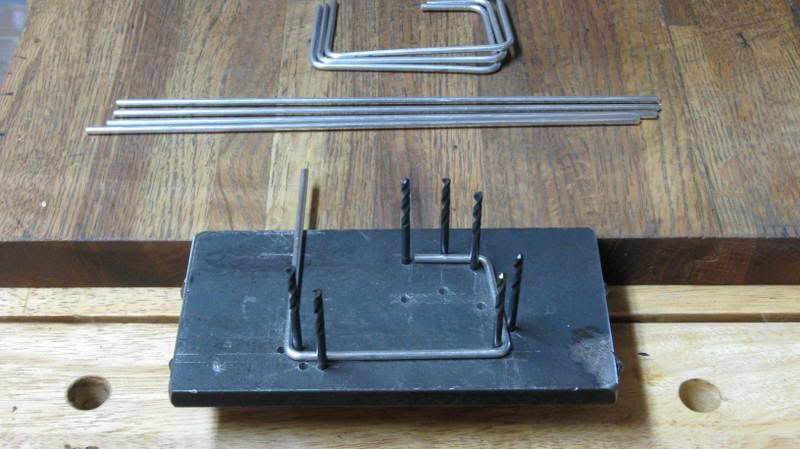

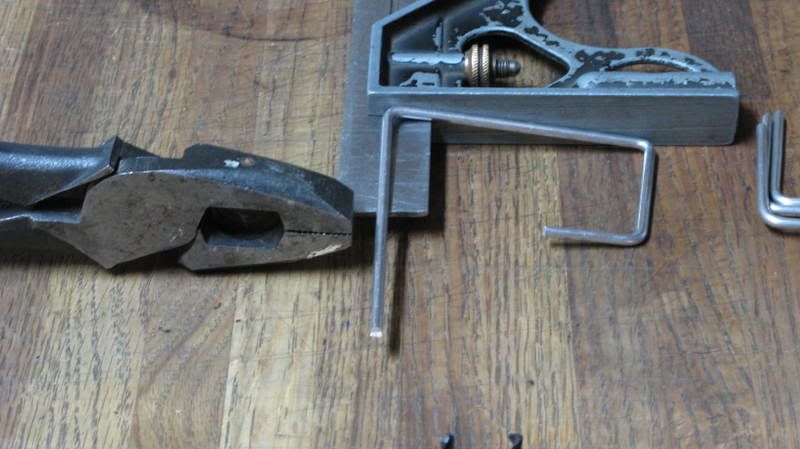

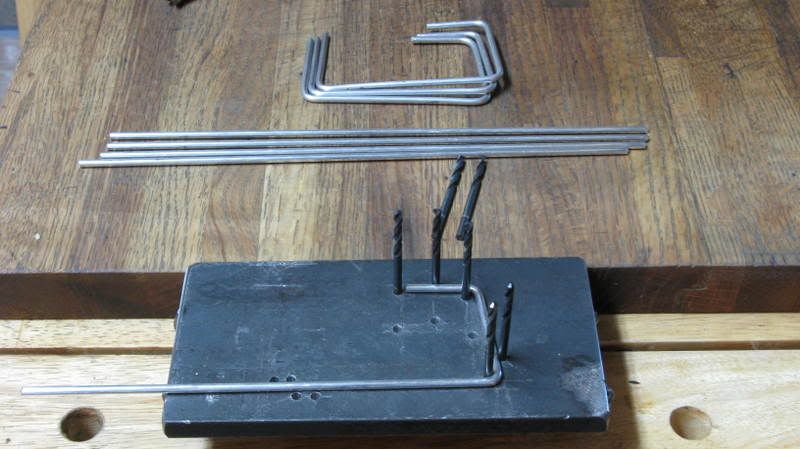

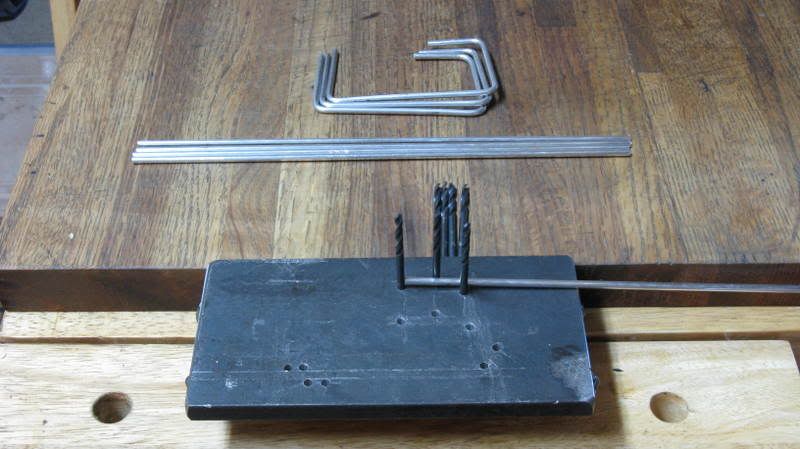

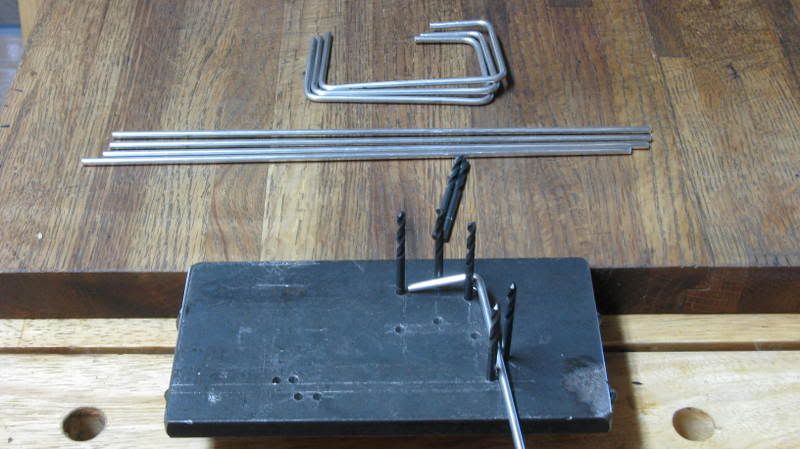

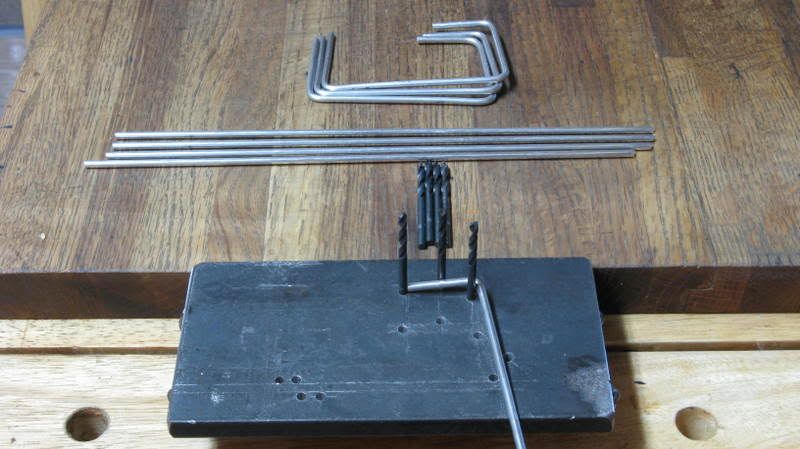

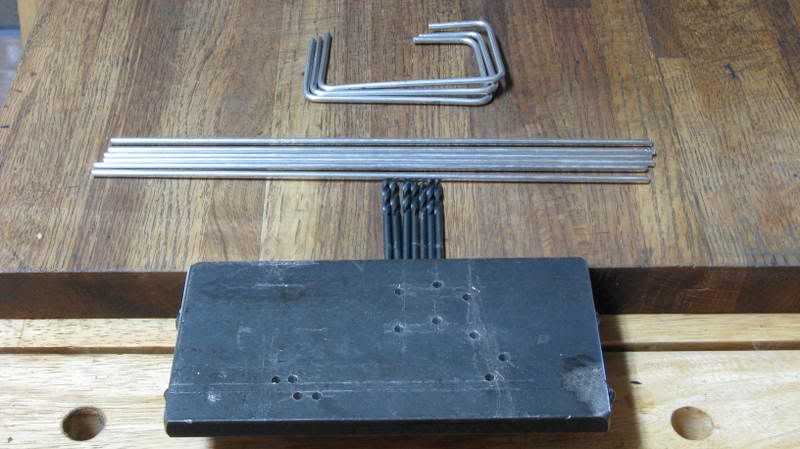

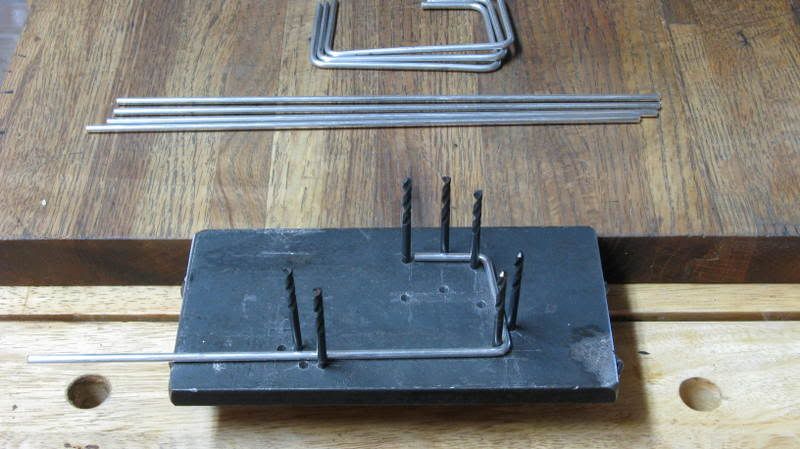

the following pics show a wire bending jig for making multiple identical potstand legs.









Daren.......
"I'd rather be happy than right." Slartibartfast

Tony
Posts: 293
Joined: Thu Sep 27, 2007 11:46 pm
Location: Canberra Australia
Contact:

Re: Wire Bending Jig

Post by Tony » Sun Jun 29, 2008 5:48 pm

Thanks Daren for sharing your knowledge and skills.

Tony

User avatar
Ridgerunner
Posts: 5278
Joined: Wed Sep 19, 2007 9:08 pm
Location: SW, Ohio
Contact:

Re: Wire Bending Jig

Post by Ridgerunner » Sun Jun 29, 2008 6:10 pm

Thanks Daren. It's been 30 years since I made use of jigs in a manufacturing shop class i took in college. Now, if you could show us the art of welding the leg holders to the pot stand ring. ;)
"Many of lifes failures are people who did not realize how close they were to success when they gave up".....Thomas Edison

"Live Life....Love Life....Ask More !

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: Wire Bending Jig

Post by DarenN » Sun Jun 29, 2008 6:24 pm

sure thing, Ridgerunner. when i go back to work on wednesday i'll take pic of the spot-welder. ;)
"I'd rather be happy than right." Slartibartfast

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: Wire Bending Jig

Post by DarenN » Sun Jun 29, 2008 8:17 pm

here's the jig i built to make the leg holders. it didn't need to be as big and heavey as it is. i just picked up some scraps out of the trash.


line up the blank, carefully close the jig, and clamp it closed in the bench vise.

while it's true that these two jigs were made to do specific tasks, the possibilities of different styles are endless. the next time you are scratching your head over some small bending or forming job, just think about these jigs, and design what you need.
in days gone by, sheet metal workers used a lot of jigs made from hardwood. these jigs didn't last very long, and were often "one-use" items. as such it was cheaper and easier to use wood as opposed to machining the jig from metal.

Daren......
"I'd rather be happy than right." Slartibartfast

oops56
Posts: 1920
Joined: Wed Sep 19, 2007 11:31 am

Re: Wire Bending Jig

Post by oops56 » Sun Jun 29, 2008 8:51 pm

DarenN wrote:here's the jig i built to make the leg holders. it didn't need to be as big and heavey as it is. i just picked up some scraps out of the trash.


line up the blank, carefully close the jig, and clamp it closed in the bench vise.

while it's true that these two jigs were made to do specific tasks, the possibilities of different styles are endless. the next time you are scratching your head over some small bending or forming job, just think about these jigs, and design what you need.
in days gone by, sheet metal workers used a lot of jigs made from hardwood. these jigs didn't last very long, and were often "one-use" items. as such it was cheaper and easier to use wood as opposed to machining the jig from metal.

Daren......
I been there done that when i work making jigs all the time.I engineer a new type of bearing block and guess who had to do all the jigs and make them. The machines had about 70 of them repace 6 or 7 a week.
Man play with fire man get burnt

User avatar
samh
Posts: 90
Joined: Mon Oct 15, 2007 7:48 pm
Location: Bozeman, MT
Contact:

Re: Wire Bending Jig

Post by samh » Sun Jun 29, 2008 8:59 pm

Thanks for the 'process' photos, Daren.

User avatar
Ridgerunner
Posts: 5278
Joined: Wed Sep 19, 2007 9:08 pm
Location: SW, Ohio
Contact:

Re: Wire Bending Jig

Post by Ridgerunner » Sun Jun 29, 2008 9:36 pm

Daren, great photos. They will be helpful in the secret stovie labratory. I suppose the brackets could always be attached with jb-weld. The spot welds look real nice. One must have access to the proper tools. ;)
"Many of lifes failures are people who did not realize how close they were to success when they gave up".....Thomas Edison

"Live Life....Love Life....Ask More !

User avatar
DarenN
Posts: 2816
Joined: Wed Feb 06, 2008 11:46 am
Location: Surrey, B.C. Canada

Re: Wire Bending Jig

Post by DarenN » Sun Jun 29, 2008 9:42 pm

i always try to think of ways to do things that don't require the special tools and equipment that i have access to, and others probably don't.

if my compact stand burner ring was made just the right size, there would be room to rivet the leg brackets on.

Daren.......
"I'd rather be happy than right." Slartibartfast

DaddyMnM
Posts: 346
Joined: Tue Feb 26, 2008 7:26 pm
Location: Seattle

Re: Wire Bending Jig

Post by DaddyMnM » Sun Jun 29, 2008 11:11 pm

Daren,

Nice work! Your work always seems to show how a professional job should look.

Any alternates for those who don't have access to a spot welder? Do you supposed that the legs could alternately be crimped to the base/band instead of welded? I also wonder if you could cut two slots the width of the wire diameter in the band top and bottom, thread the leg through the slots, and crimp, you might form some sort of hinge without welding.

Thanks for sharing.
